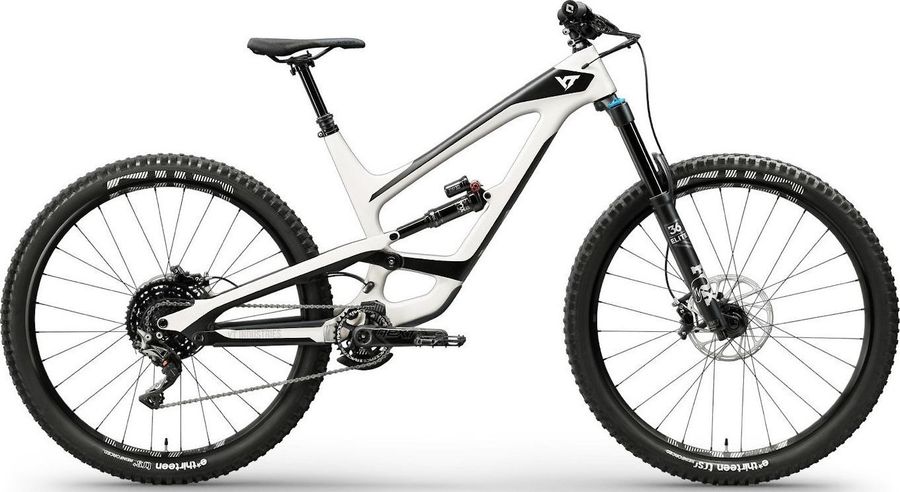

Sobre a YT Capra 29 CF Pro 2018
A YT Capra 29 CF Pro 2018 é uma Mountain Bike Full Suspension em carbono designada para a prática do Enduro. Vem equipada com o grupo Shimano XTR de 11 velocidades (1x11). Possui canote retrátil, cubo dianteiro boost, e cubo traseiro boost. A bike tem o peso aproximado de 13,7 kg.
Tecnologias
Canote retrátil
O canote retrátil possui um sistema hidráulico ou a ar embutido que torna possível ajsutar a altura do selim durante a pedalada. Esse sistema é controlado atrás de uma alavanca posicionada no guidão. Na prática, é possível abaixar a altura do selim consideravelmente durante uma descida mais técnica, por exemplo.
Cubo dianteiro boost
Cubos boost (Boost 110) são cubos 10mm mais largos que o tamanho dos cubos tradicionais. Ou seja, um cubo boost dianteiro possui 110mm e não 100mm como é o padrão do mercado. A diferença imediata ao se utilizar um cubo dianteiro boost é no ganho de rigidez e estabilidade da roda.
Cubo traseiro boost
Cubos boost (Boost 148) são cubos 6mm mais largos que o tamanho dos cubos tradicionais. Ou seja, um cubo traseiro boost possui 148mm e não 142mm como é o padrão do mercado. A diferença imediata ao se utilizar um cubo traseiro boost é no ganho de rigidez e estabilidade da roda.
Freio hidráulico
Freios hidráulicos são similares aos modelos mecânicos, porém ao invés de cabos eles utilizam óleo para movimentar as pinças quando a manete é acionada. Os freios hidráulicos são superiores aos modelos mecânicos pois oferecem uma frenagem mais precisa, segura e confortável.
Especificações
|
Manoplas
/
Grip
|
ODI Elite Motion V2.1 Lock-on
|
|---|---|
|
Pedais
/
Pedals
|
None included
|
|
Mesa
/
Steam
|
Race Face Turbine R, 40mm length
|
|---|---|
|
Selim
/
Saddle
|
SDG Fly MTN Cutout, light grey, YT custom
|
|
Caixa de direção
/
Headset
|
Acros AZX-203
|
|
Canote
/
Seatpost
|
FOX Transfer Performance Elite, 125mm or 150mm drop
|
|
Guidão
/
Handlebar
|
Race Face Turbine R 35, 35mm rise, 800mm width
|
|
Alavancas de freio
/
Brake lever
|
SRAM Code RSC
|
|
Freio
/
Brakes
|
SRAM Code RSC
Hidráulico
|
|
|
|
|
Pedivela
/
Crankset
|
Race Face Next R, 170mm, Boost
|
|---|---|
|
Trocadores
/
Shifter
|
Shimano XTR, 11-speed
|
|
Guia de corrente
/
Chain guide
|
e*thirteen TRS+
|
|
Movimento central
/
Bottom bracket
|
Race Face BB92
|
|
Cassete
/
Cassette
|
E*thirteen TRS+
|
|
Corrente
/
Chain
|
Shimano CN-HG601
257 g
|
|
|
|
|
Câmbio traseiro
/
Rear derailleur
|
Shimano XTR RD-M9000-SGS
224 g
Cage SGS
11v
|
|
42T(2x11-speed), 46T(1x11-speed) |
|
|
Quadro
/
Frame
|
Carbon Fiber
|
|---|---|
|
Suspensão dianteira
/
Front suspension
|
Fox 36 Float Performance Elite
|
|
Suspensão traseira
/
Rear suspension
|
Fox DPX2 Performance Elite
|
|
Aros
/
Rims
|
e*thirteen TRS+, 28 hole, 30mm width
|
|---|---|
|
Pneus
/
Tires
|
Front: e*thirteen TRSR, 2.35", Rear: e*thirteen TRS+, 2.35"
|
|
Cubo traseiro
/
Rear hub
|
e*thirteen TRS+, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
|
|
Cubo dianteiro
/
Front hub
|
e*thirteen TRS+, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
|
Geometria
| Size | MD High | MD High | MD Low | MD Low | LG High | LG High | LG Low | LG Low | XL High | XL High | XL Low | XL Low | XXL High | XXL High | XXL Low | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
a
Comprimento do tubo de selim
Seat tube length
|
420,0
|
420,0
|
420,0
|
420,0
|
445,0
|
445,0
|
445,0
|
445,0
|
465,0
|
465,0
|
465,0
|
465,0
|
490,0
|
490,0
|
490,0
|
490,0
|
|
b
Ângulo do tubo de selim
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Comprimento do tubo superior efetivo
Top tube length
|
586,0
|
586,0
|
586,0
|
586,0
|
622,0
|
622,0
|
622,0
|
622,0
|
645,0
|
645,0
|
645,0
|
645,0
|
667,0
|
667,0
|
667,0
|
667,0
|
|
d
Comprimento do tubo de direção
Head tube length
|
95,0
|
95,0
|
95,0
|
95,0
|
105,0
|
105,0
|
105,0
|
105,0
|
115,0
|
115,0
|
115,0
|
115,0
|
120,0
|
120,0
|
120,0
|
120,0
|
|
e
Ângulo do tubo de direção
Head tube angle
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
65,5º
|
|
f
Distância entre o eixo da roda e direção
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trilha
Trail
|
125,0
|
125,0
|
125,0
|
125,0
|
125,0
|
125,0
|
125,0
|
125,0
|
125,0
|
125,0
|
125,0
|
125,0
|
125,0
|
125,0
|
125,0
|
125,0
|
|
h
Comprimento entre eixos
Wheelbase
|
1202,0
|
1202,0
|
1202,0
|
1202,0
|
1226,0
|
1226,0
|
1226,0
|
1226,0
|
1255,0
|
1255,0
|
1255,0
|
1255,0
|
1277,0
|
1277,0
|
1277,0
|
1277,0
|
|
i
Comprimento de rabeira
Chainstay length
|
438,0
|
438,0
|
438,0
|
438,0
|
438,0
|
438,0
|
438,0
|
438,0
|
443,0
|
443,0
|
443,0
|
443,0
|
443,0
|
443,0
|
443,0
|
443,0
|
|
j
Altura do movimento central
Bottom bracket drop
|
19,0
|
19,0
|
19,0
|
19,0
|
19,0
|
19,0
|
19,0
|
19,0
|
19,0
|
19,0
|
19,0
|
19,0
|
19,0
|
19,0
|
19,0
|
19,0
|
|
k
Altura do quadro
Stack height
|
621,0
|
621,0
|
621,0
|
621,0
|
630,0
|
630,0
|
630,0
|
630,0
|
639,0
|
639,0
|
639,0
|
639,0
|
643,0
|
643,0
|
643,0
|
643,0
|
|
l
Comprimento do quadro
Reach
|
448,0
|
448,0
|
448,0
|
448,0
|
468,0
|
468,0
|
468,0
|
468,0
|
488,0
|
488,0
|
488,0
|
488,0
|
508,0
|
508,0
|
508,0
|
508,0
|
|
m
Altura do tubo superior
Standover height
|
702,0
|
702,0
|
702,0
|
702,0
|
726,0
|
726,0
|
726,0
|
726,0
|
738,0
|
738,0
|
738,0
|
738,0
|
748,0
|
748,0
|
748,0
|
748,0
|
|
x
Altura do movimento central ao solo
Bottom bracket height
|
355,0
|
355,0
|
355,0
|
355,0
|
355,0
|
355,0
|
355,0
|
355,0
|
355,0
|
355,0
|
355,0
|
355,0
|
355,0
|
355,0
|
355,0
|
355,0
|
|
y
Comprimento do central ao eixo dianteiro
Front center
|
765,0
|
765,0
|
765,0
|
765,0
|
789,0
|
789,0
|
789,0
|
789,0
|
813,0
|
813,0
|
813,0
|
813,0
|
835,0
|
835,0
|
835,0
|
835,0
|
