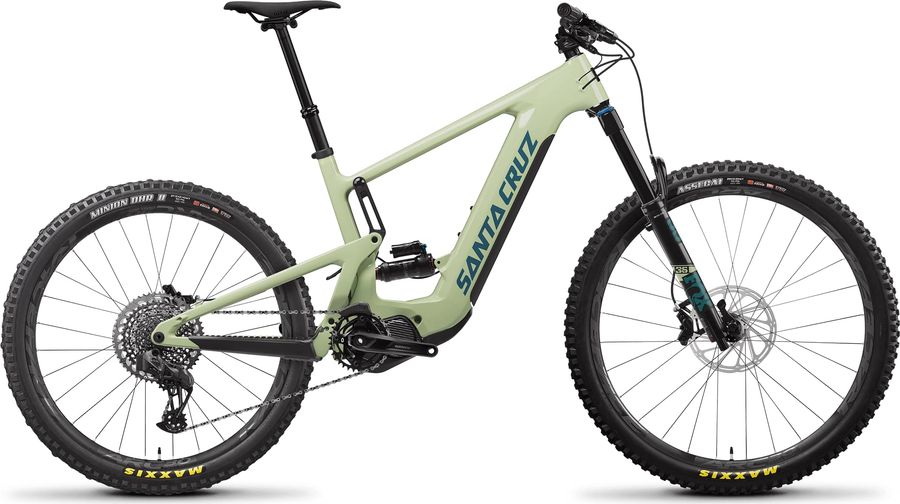

Santa Cruz HECKLER GX AXS / Carbon C / MX 2023

E-Bike
Grupo
SRAM GX Eagle AXS
Material do quadro
Carbono
Tamanho do aro
27,5"
Suspensão
Full Suspension
Curso dianteiro
160mm
Curso traseiro
150mm
Santa Cruz HECKLER GX AXS / Carbon C / MX 2023

Sobre a Santa Cruz HECKLER GX AXS / Carbon C / MX 2023

A Santa Cruz HECKLER GX AXS / Carbon C / MX 2023 é uma Mountain Bike Full Suspension em carbono designada para a prática do Enduro. Vem equipada com o grupo SRAM GX Eagle AXS. Possui canote retrátil, cubo dianteiro boost, e cubo traseiro boost.


Tecnologias

A Santa Cruz HECKLER GX AXS / Carbon C / MX 2023 possui 4 recursos listados abaixo.
canote-retratil
Canote retrátil Mais infos
cubo-dianteiro-boost
Cubo dianteiro boost Mais infos
cubo-traseiro-boost
Cubo traseiro boost Mais infos
freio-hidraulico
Freio hidráulico Mais infos

Especificações

Acessórios
Manoplas Grip
Santa Cruz House Grips
Controlador Remote
Shimano Display Unit SC-EM800
Componentes
Mesa Steam
Burgtec Enduro MK3
Selim Saddle
WTB Silverado Medium Cromoly SL Fusion Saddle or WTB Volt
Bateria Battery
720Wh Integrated, removable
Carregador Charger
Smart-Plus 4A Charger
Caixa de direção Headset
Cane Creek 40 IS Integrated Headset
Canote Seatpost
Fox Transfer Performance Elite
Guidão Handlebar
Santa Cruz e35 Carbon Bar, 800mm, 35mm Rise
Discos Discs
Avid Centerline 200mm
Freio Brakes
SRAM Code R Hidráulico
Aplicação
Application
MTB
Material da lâmina
Blade material
Alumínio - Forjado
Suporte do freio a disco
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Tipo de freio
Brake type
Hidráulico
Cor
Color
Dark Grey Paint, Diffusion Black
Modelo
Model
DB-CODE-R-B1
Nome
Name
Code R
Orientação
Orientation
Dianteiro, traseiro
Tipo da pastilha
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Grupo principal
Pedivela Crankset
Shimano EM600 Crank Arms, 165mm
Motor Motor
Shimano Drive Unit DU-EP800
Trocadores Shifter
SRAM GX AXS Controller
Guia de corrente Chain guide
E13 E-Spec+ AL
Corrente Chain
SRAM GX Eagle 244 g
Connector de corrente
Chain connector
PowerLock
Links da corrente
Chain length links
126 links
Cor do link interno
Color inner link
Preto
Cor do link externo
Color outer link
Prata
Velocidade compatível
Compat speed
12s-Eagle
Acabamento do link interno
Inner link finish
Óxido preto
Modelo
Model
CN-EAGL-GX-A1
Nome
Name
GX Eagle Chain
Acabamento do link externo
Outer link finish
Níquel
Tipo do pino
Pin variant
Pino sólido
Peso baseado em
Weight based on
114 links
Peso
Weight
244
Câmbio traseiro Rear derailleur
SRAM GX Eagle AXS
Cassete Cassette
SRAM XG-1275 Eagle 12s
Acabamento do cassete
Cog finish cassete
Preto
Tamanhos do cog
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Tamanho
Gearing
10-52t
Modelo
Model
CS-XG-1275-B1
Nome
Name
XG-1275 Eagle Cassette
Velocidades
Speed
12s
Tecnologia do cassete
Technology cassete
XG
Conjunto de quadro
Quadro Frame
HECKLER GX AXS / Carbon C / MX
Suspensão dianteira Front suspension
Fox 36 Float Performance Elite
Suspensão traseira Rear suspension
RockShox Super Deluxe Select 440 g
Body eyelet
Body eyelet
No Bushing, Standard
Compression tune
Compression tune
H, L, L1, LC, M
Tipo de amortecedor
Damper type
R
Eye to eye stroke
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Modelo
Model
RS-SDLX-SEL-B2
Nome
Name
Super Deluxe Select
Rebound tune
Rebound tune
H, L, M
Shaft eyelet
Shaft eyelet
No Bushing, Standard, Trunnion
Peso baseado em
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Peso
Weight
440
Entre eixos
Aros Rims
RaceFace ARC HD 30 29” (F), 27.5” (R) (Size Small is 27.5” Front and Rear)
Pneus Tires
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGrip, EXO+, TR (Size Small is 27.5”), Rear: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+, TR
Raios Spokes
Sapim Race
Cubo traseiro Rear hub
Industry Nine 1/1, 148x12, XD, 32h
Cubo dianteiro Front hub
Industry Nine 1/1, 110x15, 32h

Geometria

Size SM High SM Low MD High MD Low LG High LG Low XL High XL Low XXL High XXL Low
a
Comprimento do tubo de selim Seat tube length
390,0
390,0
405,0
405,0
430,0
430,0
460,0
460,0
500,0
500,0
b
Ângulo do tubo de selim Seat tube angle
76,9º
76,7º
76,8º
76,6º
76,7º
76,4º
77,0º
76,7º
77,0º
76,8º
c
Comprimento do tubo superior efetivo Top tube length
578,0
579,0
606,0
607,0
631,0
632,0
652,0
653,0
681,0
682,0
d
Comprimento do tubo de direção Head tube length
130,0
130,0
100,0
100,0
115,0
115,0
135,0
135,0
155,0
155,0
e
Ângulo do tubo de direção Head tube angle
64,8º
64,5º
64,8º
64,5º
64,8º
64,5º
64,8º
64,5º
64,8º
64,5º
f
Distância entre o eixo da roda e direção Rake
45,0
45,0
36,0
36,0
36,0
36,0
36,0
36,0
36,0
35,0
g
Trilha Trail
118,0
120,0
127,0
130,0
127,0
130,0
127,0
130,0
127,0
131,0
h
Comprimento entre eixos Wheelbase
1213,0
1214,0
1233,0
1234,0
1259,0
1260,0
1288,0
1289,0
1321,0
1322,0
i
Comprimento de rabeira Chainstay length
452,0
453,0
452,0
453,0
452,0
453,0
452,0
453,0
452,0
453,0
j
Altura do movimento central Bottom bracket drop
8,0
12,0
8,0
12,0
8,0
12,0
8,0
12,0
8,0
12,0
k
Altura do quadro Stack height
614,0
616,0
623,0
625,0
636,0
639,0
655,0
657,0
673,0
675,0
l
Comprimento do quadro Reach
437,0
434,0
462,0
459,0
482,0
479,0
502,0
499,0
527,0
524,0
m
Altura do tubo superior Standover height
727,0
723,0
752,0
748,0
750,0
747,0
748,0
744,0
748,0
745,0
x
Altura do movimento central ao solo Bottom bracket height
346,0
342,0
346,0
342,0
346,0
342,0
346,0
342,0
346,0
342,0
y
Comprimento do central ao eixo dianteiro Front center
761,0
761,0
781,0
781,0
807,0
807,0
836,0
736,0
869,0
869,0
