Santa Cruz Bronson X01 / Carbon CC / 27.5 2021

MTB Enduro
Grupo
SRAM X01 Eagle
Material do quadro
Carbono
Tamanho do aro
27,5"
Suspensão
Full Suspension
Curso dianteiro
160mm
Curso traseiro
150mm

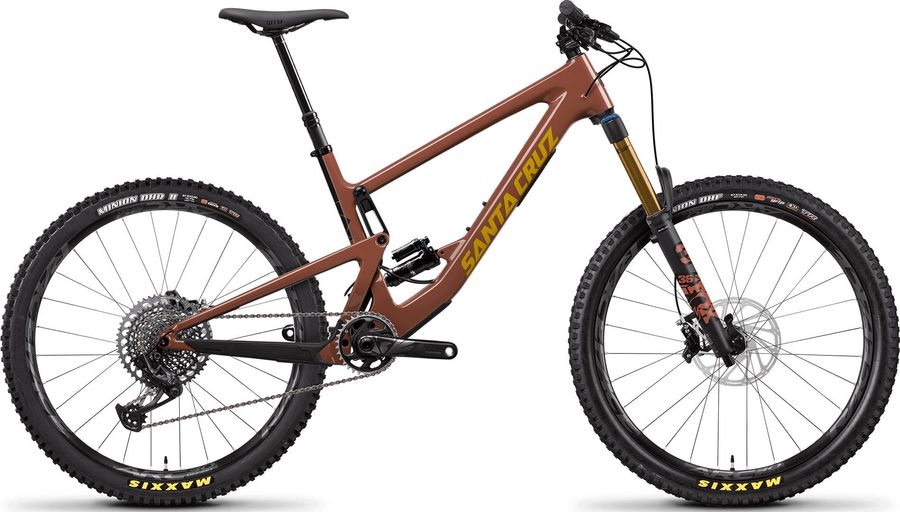

Santa Cruz Bronson X01 / Carbon CC / 27.5 2021

Sobre a Santa Cruz Bronson X01 / Carbon CC / 27.5 2021

A Santa Cruz Bronson X01 / Carbon CC / 27.5 2021 é uma Mountain Bike Full Suspension em carbono designada para a prática do Enduro. Vem equipada com o grupo SRAM X01 Eagle de 12 velocidades (1x12). Possui canote retrátil, cubo dianteiro boost, e cubo traseiro boost.

Tecnologias

A Santa Cruz Bronson X01 / Carbon CC / 27.5 2021 possui 4 recursos listados abaixo.
canote-retratil
Canote retrátil Mais infos
cubo-dianteiro-boost
Cubo dianteiro boost Mais infos
cubo-traseiro-boost
Cubo traseiro boost Mais infos
freio-hidraulico
Freio hidráulico Mais infos

Especificações

Acessórios
Manoplas Grip
Santa Cruz Palmdale
Componentes
Mesa Steam
Burgtec Enduro MK3
Selim Saddle
WTB Silverado Team
Caixa de direção Headset
Cane Creek 40 IS Integrated
Canote Seatpost
RockShox Reverb Stealth
Guidão Handlebar
Santa Cruz Bicycles Carbon Riser
Discos Discs
Avid Centerline 200mm/180mm
Freio Brakes
SRAM Code RSC Hidráulico
Aplicação
Application
MTB
Material da lâmina
Blade material
Alumínio - Forjado
Suporte do freio a disco
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Tipo de freio
Brake type
Hidráulico
Cor
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Modelo
Model
DB-CODE-RSC-A1
Nome
Name
Code RSC
Orientação
Orientation
Dianteiro, traseiro
Tipo da pastilha
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Grupo principal
Pedivela Crankset
SRAM X1 Eagle Carbon 148 DUB, 32t
Trocadores Shifter
SRAM X01 Eagle, 12spd
Movimento central Bottom bracket
SRAM DUB 68/73mm
Corrente Chain
SRAM X01 Eagle 239 g
Connector de corrente
Chain connector
PowerLock
Links da corrente
Chain length links
126 links
Cor do link interno
Color inner link
Prata
Cor do link externo
Color outer link
Prata
Velocidade compatível
Compat speed
12s-Eagle
Acabamento do link interno
Inner link finish
Chrome Plated
Modelo
Model
CN-EAGL-X01-A1
Nome
Name
X01 Eagle Chain
Acabamento do link externo
Outer link finish
Níquel
Tipo do pino
Pin variant
Pino oco
Peso baseado em
Weight based on
114 links
Peso
Weight
239
Cassete Cassette
SRAM XG-1295 Eagle 12s 350 g
Acabamento do cassete
Cog finish cassete
Preto
Tamanhos do cog
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Tamanho
Gearing
10-52t
Modelo
Model
CS-XG-1295-B1
Nome
Name
XG-1295 Eagle Cassette
Velocidades
Speed
12s
Tecnologia do cassete
Technology cassete
XG
Peso
Weight
350
Câmbio traseiro Rear derailleur
SRAM X01 Eagle 12s
Razão de puxada do cabo
Cable pull ratio
X-actuation
Cor
Color
Black, Lunar, Red
Max dentes
Max tooth
52
Modelo
Model
RD-X0-1-B2
Nome
Name
X01 Eagle Rear Derailleur
Velocidades
Speed
12s
Conjunto de quadro
Quadro Frame
Bronson X01 / Carbon CC / 27.5
Suspensão dianteira Front suspension
Fox 36 Float Factory
Suspensão traseira Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Body eyelet
Bearing, No Bushing, Standard
Compression tune
Compression tune
H, L, L1, LC, M
Tipo de amortecedor
Damper type
RCT
Eye to eye stroke
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
Lockout force
268, 320, 380
Modelo
Model
RS-SDLX-ULT-B2
Nome
Name
Super Deluxe Ultimate
Rebound tune
Rebound tune
H, L, M
Shaft eyelet
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Peso baseado em
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Peso
Weight
453
Entre eixos
Aros Rims
RaceFace ARC Offset 30 27.5"
Pneus Tires
Maxxis Minion DHR II 27.5"x2.5", 3C, MaxxGRIP, EXO, TR
Raios Spokes
Sapim Race
Cubo traseiro Rear hub
DT Swiss 350, 12x148, XD, 28h
Cubo dianteiro Front hub
DT Swiss 350, 15x110, 28h

Geometria

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Comprimento do tubo de selim Seat tube length
370,0
370,0
380,0
380,0
405,0
405,0
430,0
430,0
460,0
460,0
b
Ângulo do tubo de selim Seat tube angle
75,3º
75,0º
75,3º
75,0º
75,3º
75,0º
75,3º
75,0º
75,3º
75,0º
c
Comprimento do tubo superior efetivo Top tube length
545,0
545,0
578,0
578,0
602,0
602,0
625,0
625,0
660,0
660,0
d
Comprimento do tubo de direção Head tube length
100,0
100,0
110,0
110,0
120,0
120,0
130,0
130,0
145,0
145,0
e
Ângulo do tubo de direção Head tube angle
65,4º
65,1º
65,4º
65,1º
65,4º
65,1º
65,4º
65,1º
65,4º
65,1º
f
Distância entre o eixo da roda e direção Rake
48,0
49,0
47,0
48,0
49,0
53,0
46,0
47,0
47,0
48,0
g
Trilha Trail
110,0
111,0
111,0
112,0
109,0
107,0
112,0
113,0
111,0
112,0
h
Comprimento entre eixos Wheelbase
1138,0
1138,0
1171,0
1171,0
1195,0
1195,0
1219,0
1219,0
1256,0
1256,0
i
Comprimento de rabeira Chainstay length
434,0
434,0
434,0
434,0
434,0
434,0
434,0
434,0
434,0
434,0
j
Altura do movimento central Bottom bracket drop
10,0
14,0
10,0
14,0
10,0
14,0
10,0
14,0
10,0
14,0
k
Altura do quadro Stack height
588,0
590,0
597,0
599,0
606,0
609,0
615,0
618,0
629,0
631,0
l
Comprimento do quadro Reach
393,0
389,0
423,0
419,0
440,0
433,0
463,0
459,0
493,0
489,0
m
Altura do tubo superior Standover height
698,0
696,0
708,0
704,0
725,0
721,0
725,0
719,0
724,0
719,0
x
Altura do movimento central ao solo Bottom bracket height
344,0
340,0
344,0
340,0
344,0
340,0
344,0
340,0
344,0
340,0
y
Comprimento do central ao eixo dianteiro Front center
703,0
703,0
737,0
737,0
761,0
761,0
785,0
785,0
821,0
821,0
