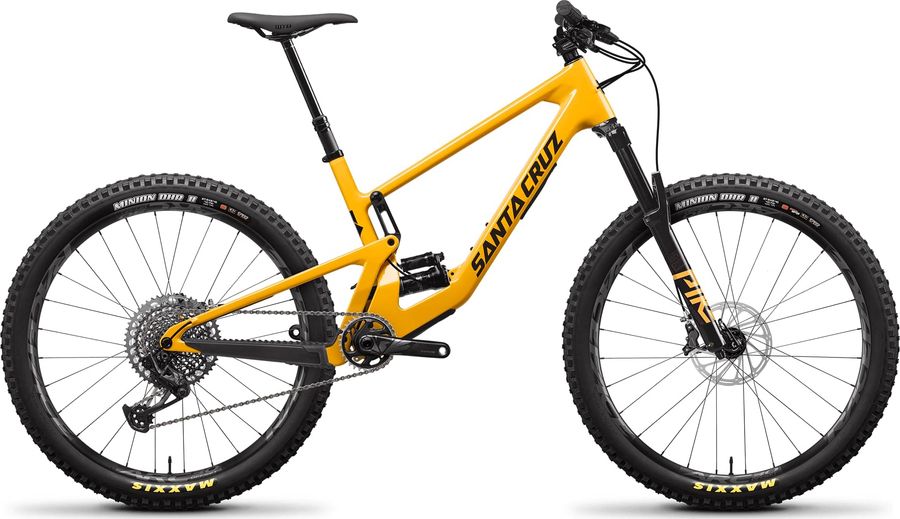

Santa Cruz 5010 X01 / Carbon CC / 27.5 2022

MTB Trail
Grupo
SRAM X01 Eagle
Material do quadro
Carbono
Tamanho do aro
27,5"
Suspensão
Full Suspension
Curso dianteiro
140mm
Curso traseiro
130mm
Santa Cruz 5010 X01 / Carbon CC / 27.5 2022

Sobre a Santa Cruz 5010 X01 / Carbon CC / 27.5 2022

A Santa Cruz 5010 X01 / Carbon CC / 27.5 2022 é uma Mountain Bike Full Suspension em carbono designada para a prática do Trail. Vem equipada com o grupo SRAM X01 Eagle de 12 velocidades (1x12). Possui canote retrátil, cubo dianteiro boost, e cubo traseiro boost.

Tecnologias

A Santa Cruz 5010 X01 / Carbon CC / 27.5 2022 possui 4 recursos listados abaixo.
canote-retratil
Canote retrátil Mais infos
cubo-dianteiro-boost
Cubo dianteiro boost Mais infos
cubo-traseiro-boost
Cubo traseiro boost Mais infos
freio-hidraulico
Freio hidráulico Mais infos

Especificações

Acessórios
Manoplas Grip
Santa Cruz House Grips or Burgtec Bartender Pro Grip Minnaar
Componentes
Mesa Steam
Burgtec Enduro MK3, 42.5mm
Selim Saddle
WTB Silverado Team Saddle or WTB Volt
Caixa de direção Headset
Cane Creek 40 IS Integrated Headset
Canote Seatpost
RockShox Reverb Stealth 31.6
Guidão Handlebar
Santa Cruz 35 Carbon Bar, 800mm, 35mm Rise
Discos Discs
Avid Centerline 180mm
Freio Brakes
SRAM G2 RSC Hidráulico 248 g
Aplicação
Application
MTB
Material da lâmina
Blade material
Aluminum - Stamped
Suporte do freio a disco
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Tipo de freio
Brake type
Hidráulico
Cor
Color
Diffusion Black
Modelo
Model
DB-G2-RSC-A1
Nome
Name
G2 RSC
Orientação
Orientation
Dianteiro, traseiro
Tipo da pastilha
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Peso baseado em
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Peso
Weight
248
Grupo principal
Pedivela Crankset
SRAM X1 Eagle Carbon DUB 32t
Trocadores Shifter
SRAM X01 Eagle
Movimento central Bottom bracket
SRAM DUB 68/73mm Threaded BB
Corrente Chain
SRAM X01 Eagle 239 g
Connector de corrente
Chain connector
PowerLock
Links da corrente
Chain length links
126 links
Cor do link interno
Color inner link
Prata
Cor do link externo
Color outer link
Prata
Velocidade compatível
Compat speed
12s-Eagle
Acabamento do link interno
Inner link finish
Chrome Plated
Modelo
Model
CN-EAGL-X01-A1
Nome
Name
X01 Eagle Chain
Acabamento do link externo
Outer link finish
Níquel
Tipo do pino
Pin variant
Pino oco
Peso baseado em
Weight based on
114 links
Peso
Weight
239
Cassete Cassette
SRAM XG-1295 Eagle 12s 350 g
Acabamento do cassete
Cog finish cassete
Preto
Tamanhos do cog
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Tamanho
Gearing
10-52t
Modelo
Model
CS-XG-1295-B1
Nome
Name
XG-1295 Eagle Cassette
Velocidades
Speed
12s
Tecnologia do cassete
Technology cassete
XG
Peso
Weight
350
Câmbio traseiro Rear derailleur
SRAM X01 Eagle 12s
Razão de puxada do cabo
Cable pull ratio
X-actuation
Cor
Color
Black, Lunar, Red
Max dentes
Max tooth
52
Modelo
Model
RD-X0-1-B2
Nome
Name
X01 Eagle Rear Derailleur
Velocidades
Speed
12s
Conjunto de quadro
Quadro Frame
5010 X01 / Carbon CC / 27.5
Suspensão dianteira Front suspension
RockShox Pike Ultimate DebonAir
Cor
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Gloss Silver
Tipo de amortecedor
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
Deslocamento da suspensão
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Largura máxima do pneu (mm)
Max tire width (mm)
81
Tamanho maximo do rotor
Maximum rotor size
220mm
Tamanho mínimo do rotor
Minimum rotor size
180mm
Modelo
Model
FS-PIKE-ULT-B4
Nome
Name
Pike Ultimate
Mola
Spring
DebonAir
Curso (mm)
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Tipo do tubo superior
Upper tube type
35mm tapered wall aluminum
Tamanho da roda
Wheel size
27.5", 29"
Suspensão traseira Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Body eyelet
Bearing, No Bushing, Standard
Compression tune
Compression tune
H, L, L1, LC, M
Tipo de amortecedor
Damper type
RCT
Eye to eye stroke
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
Lockout force
268, 320, 380
Modelo
Model
RS-SDLX-ULT-B2
Nome
Name
Super Deluxe Ultimate
Rebound tune
Rebound tune
H, L, M
Shaft eyelet
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Peso baseado em
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Peso
Weight
453
Entre eixos
Aros Rims
Race Face ARC Offset 30 27.5" Rims
Pneus Tires
Front: Maxxis Minion DHR II 27.5"x2.4", 3C, MaxxGRIP, EXO, TR, Rear: Maxxis Minion DHR II 27.5"x2.4" 3C EXO TR
Raios Spokes
Sapim Race
Cubo traseiro Rear hub
Industry Nine 1/1, 148x12, XD, 6 Bolt, 28h
Cubo dianteiro Front hub
Industry Nine 1/1, 110x15, Torque Cap, 6 Bolt, 28h

Geometria

Size XS High XS Low SM High SM Low MD High MD Low LG High LG Low XL High XL Low
a
Comprimento do tubo de selim Seat tube length
370,0
370,0
380,0
380,0
405,0
405,0
430,0
430,0
460,0
460,0
b
Ângulo do tubo de selim Seat tube angle
77,9º
77,5º
77,6º
77,2º
77,4º
77,0º
77,2º
76,8º
77,0º
76,6º
c
Comprimento do tubo superior efetivo Top tube length
528,0
528,0
559,0
560,0
589,0
591,0
620,0
621,0
650,0
651,0
d
Comprimento do tubo de direção Head tube length
100,0
100,0
120,0
120,0
135,0
135,0
150,0
150,0
165,0
165,0
e
Ângulo do tubo de direção Head tube angle
65,7º
65,4º
65,7º
65,4º
65,7º
65,4º
65,7º
65,4º
65,7º
65,4º
f
Distância entre o eixo da roda e direção Rake
49,0
44,0
50,0
44,0
47,0
45,0
44,0
44,0
42,0
44,0
g
Trilha Trail
107,0
114,0
106,0
114,0
109,0
113,0
112,0
114,0
114,0
114,0
h
Comprimento entre eixos Wheelbase
1132,0
1127,0
1166,0
1160,0
1197,0
1195,0
1228,0
1229,0
1259,0
1263,0
i
Comprimento de rabeira Chainstay length
427,0
428,0
427,0
428,0
430,0
431,0
433,0
434,0
436,0
437,0
j
Altura do movimento central Bottom bracket drop
16,0
20,0
16,0
20,0
16,0
20,0
16,0
20,0
16,0
20,0
k
Altura do quadro Stack height
576,0
578,0
594,0
597,0
608,0
610,0
622,0
624,0
635,0
638,0
l
Comprimento do quadro Reach
404,0
401,0
429,0
426,0
454,0
451,0
479,0
476,0
504,0
501,0
m
Altura do tubo superior Standover height
694,0
690,0
711,0
706,0
710,0
704,0
708,0
703,0
708,0
703,0
x
Altura do movimento central ao solo Bottom bracket height
338,0
334,0
338,0
334,0
338,0
334,0
338,0
334,0
338,0
334,0
y
Comprimento do central ao eixo dianteiro Front center
699,0
699,0
733,0
733,0
764,0
764,0
795,0
795,0
826,0
826,0
