Merida NINETY-SIX TEAM 2017

MTB Cross Country
Grupo
SRAM XX1
Tamanho do aro
29"
Suspensão
Full Suspension
Peso
10,01 kg
Curso dianteiro
100mm

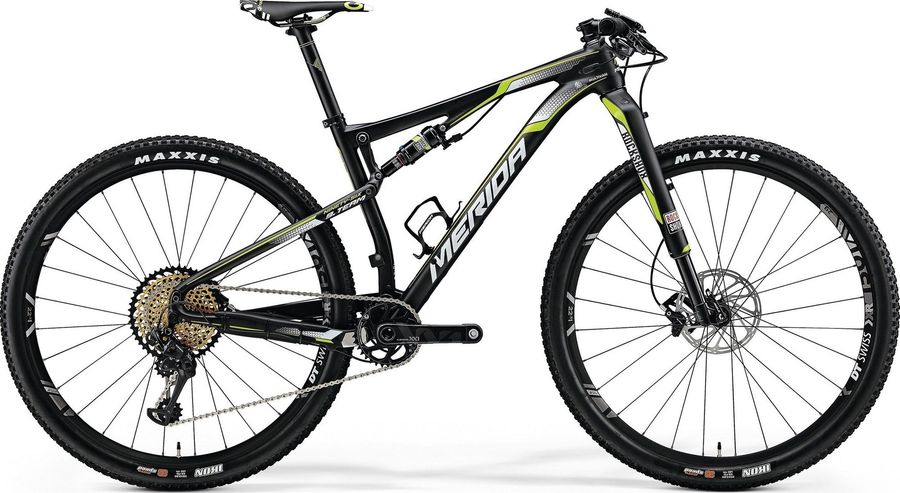

Merida NINETY-SIX TEAM 2017

Sobre a Merida NINETY-SIX TEAM 2017

A Merida NINETY-SIX TEAM 2017 é uma Mountain Bike Full Suspension designada para a prática do Cross Country. Vem equipada com o grupo SRAM XX1 de 12 velocidades (1x12). Possui freio hidráulico. A bike tem o peso aproximado de 10,01 kg.

Tecnologias

A Merida NINETY-SIX TEAM 2017 possui 1 recursos listados abaixo.
freio-hidraulico
Freio hidráulico Mais infos

Especificações

Componentes
Selim Saddle
Prologo new Nago Evo X10 TiroX
Caixa de direção Headset
Big Conoid A-bearing
Canote Seatpost
MERIDA Team carbon 31.6 SB0
Guidão Handlebar
MERIDA TEAM 720 OS flat
Alavancas de freio Brake lever
SRAMe Level Ultimate
Freio Brakes
SRAM Level Ultimate Hidráulico 317 g
Aplicação
Application
MTB
Material da lâmina
Blade material
Carbono
Suporte do freio a disco
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Tipo de freio
Brake type
Hidráulico
Cor
Color
Black Anodized, Gold
Modelo
Model
DB-LVL-ULT-A1
Nome
Name
Level Ultimate
Orientação
Orientation
Dianteiro, traseiro
Tipo da pastilha
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Peso baseado em
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Peso
Weight
317
Grupo principal
Pedivela Crankset
SRAM XX1 34T [PF]
Trocadores Shifter
SRAM XX1 eagle trigger
Cassete Cassette
SRAM XG-1299 Eagle 12s
Acabamento do cassete
Cog finish cassete
Copper, Gold, Rainbow
Tamanhos do cog
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Tamanho
Gearing
10-52t
Modelo
Model
CS-XG-1299-B1
Nome
Name
XG-1299 Eagle Cassette
Velocidades
Speed
12s
Tecnologia do cassete
Technology cassete
XG
Corrente Chain
SRAM X01 Eagle 239 g
Connector de corrente
Chain connector
PowerLock
Links da corrente
Chain length links
126 links
Cor do link interno
Color inner link
Prata
Cor do link externo
Color outer link
Prata
Velocidade compatível
Compat speed
12s-Eagle
Acabamento do link interno
Inner link finish
Chrome Plated
Modelo
Model
CN-EAGL-X01-A1
Nome
Name
X01 Eagle Chain
Acabamento do link externo
Outer link finish
Níquel
Tipo do pino
Pin variant
Pino oco
Peso baseado em
Weight based on
114 links
Peso
Weight
239
Câmbio traseiro Rear derailleur
SRAM XX1 Eagle 12s
Razão de puxada do cabo
Cable pull ratio
X-actuation
Cor
Color
Black, Lunar
Max dentes
Max tooth
52
Modelo
Model
RD-XX-1-B2
Nome
Name
XX1 Eagle Rear Derailleur
Velocidades
Speed
12s
Conjunto de quadro
Quadro Frame
NINETY-SIX CF5
Suspensão traseira Rear suspension
RockShox Monarch XX 275 g
Body eyelet
Body eyelet
Padrão
Compression tune
Compression tune
H, L, L3, M
Eye to eye stroke
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
Lockout force
320, 380, 430
Modelo
Model
RS-MNR-XX-C2
Nome
Name
Monarch XX
Rebound tune
Rebound tune
H, L, M
Shaft eyelet
Shaft eyelet
Padrão
Peso baseado em
Weight based on
165x38, standard air can, standard eyelet, no hardware
Peso
Weight
275
Suspensão dianteira Front suspension
RockShox RS-1
Entre eixos
Aros Rims
DT Swiss XR1501 Spline One PS15-R12XD
Pneus Tires
Maxxis Ikon 29 Exception 2.2 3C
Raios Spokes
attached
Cubo traseiro Rear hub
attached / DT Plug-in RWS boost
Cubo dianteiro Front hub
attached / DT Plug-in RWS boost

Geometria

Size SM MD MD MD MD LG XL
a
Comprimento do tubo de selim Seat tube length
420,0
460,0
460,0
460,0
460,0
510,0
560,0
b
Ângulo do tubo de selim Seat tube angle
75,0º
75,0º
75,0º
74,5º
74,5º
74,5º
74,5º
c
Comprimento do tubo superior efetivo Top tube length
563,0
588,0
588,0
593,0
593,0
618,0
643,0
d
Comprimento do tubo de direção Head tube length
100,0
115,0
115,0
100,0
100,0
115,0
130,0
e
Ângulo do tubo de direção Head tube angle
69,0º
69,0º
69,0º
70,0º
70,0º
70,0º
70,0º
f
Distância entre o eixo da roda e direção Rake
44,0
44,0
44,0
51,0
51,0
51,0
51,0
g
Trilha Trail
97,0
97,0
97,0
82,0
82,0
82,0
82,0
h
Comprimento entre eixos Wheelbase
1101,0
1126,0
1126,0
1129,0
1129,0
1154,0
1179,0
i
Comprimento de rabeira Chainstay length
438,0
438,0
438,0
448,0
448,0
448,0
448,0
j
Altura do movimento central Bottom bracket drop
21,0
21,0
21,0
40,0
40,0
40,0
40,0
k
Altura do quadro Stack height
559,0
573,0
573,0
592,0
592,0
606,0
620,0
l
Comprimento do quadro Reach
414,0
434,0
434,0
432,0
432,0
452,0
471,0
m
Altura do tubo superior Standover height
753,0
755,0
755,0
771,0
771,0
776,0
779,0
x
Altura do movimento central ao solo Bottom bracket height
353,0
353,0
353,0
334,0
334,0
334,0
334,0
y
Comprimento do central ao eixo dianteiro Front center
664,0
689,0
689,0
684,0
684,0
709,0
734,0
