Canyon Torque:ON 7 2022

E-Bike
Grupo
Shimano Deore
Material do quadro
Alumínio
Tamanho do aro
27,5"
Suspensão
Full Suspension
Peso
23,3 kg
Curso dianteiro
180mm
Curso traseiro
175mm

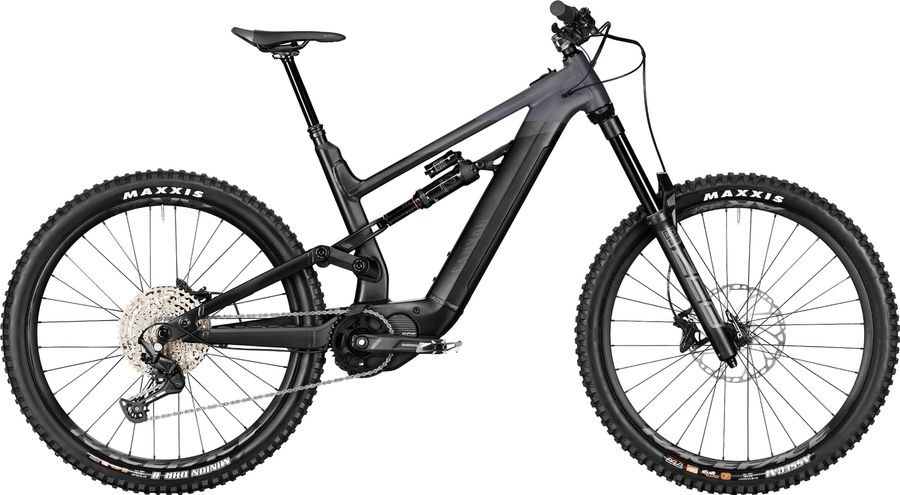

Canyon Torque:ON 7 2022

Sobre a Canyon Torque:ON 7 2022

A Canyon Torque:ON 7 2022 é uma Mountain Bike Full Suspension em alumínio designada para a prática do Enduro. Vem equipada com o grupo Shimano Deore de 12 velocidades (1x12). Possui canote retrátil, cubo dianteiro boost, e cubo traseiro boost. A bike tem o peso aproximado de 23,3 kg.


Tecnologias

A Canyon Torque:ON 7 2022 possui 4 recursos listados abaixo.
canote-retratil
Canote retrátil Mais infos
cubo-dianteiro-boost
Cubo dianteiro boost Mais infos
cubo-traseiro-boost
Cubo traseiro boost Mais infos
freio-hidraulico
Freio hidráulico Mais infos

Especificações

Acessórios
Manoplas Grip
Canyon Lock-On
Componentes
Mesa Steam
Canyon:ON Stem, 35mm clamp diameter, 40mm length
Freio Brakes
Shimano Deore M6120
Selim Saddle
Fizik Gravita Alpaca X5
Bateria Battery
Shimano BT-E8035-L Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, Adapter for external charging not included
Canote Seatpost
Iridium Dropper Post
Guidão Handlebar
Canyon:ON HB0057 Riser bar
Discos Discs
Shimano EM600 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. ICE TECH design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal | Shimano Center Lock Bremsscheibe 220mm SM-RT64
Grupo principal
Corrente Chain
Shimano CN-M6100 12s
Pedivela Crankset
Shimano STEPS, Designed for the rigors of E-MTB riding, 24mm spindle, 165mm crank arms
Motor Motor
Shimano Steps EP8 Motor
Cassete Cassette
Shimano Deore M6100 12speed, Cassette packed with trickle-down performance features. Hyperglide+ tech provides fast, smooth shifting. Beam spider construction cuts weights and boosts stiffness. Gear range: 10-51.
Trocadores Shifter
Shimano Deore M6100 12speed, Rear derailleur shifter, 12-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment, 133 g
Movimento central Bottom bracket
STEPS, press-fit
Câmbio traseiro Rear derailleur
Shimano Deore, 12-speed, 1x12 drivetrain for simpler, intuitive shifting. Long-cage design is compatible with wide-range cassettes.
Conjunto de quadro
Suspensão dianteira Front suspension
Rockshox ZEB R, 180mm, 180mm of front suspension, 27.5 fork, Boost 110 spacing, 38mm stanchions, DebonAir air spring, Charger R compression damping, rebound damping adjuster
Quadro Frame
Canyon Torque:ON, Aluminium frame, 175mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203)
Suspensão traseira Rear suspension
RockShox Super Deluxe Select, 250x70, 175mm of rear suspension. The Super Deluxe Select delivers true long-travel performance, highly tunable DebonAir™ spring, adjustable rebound damping
Entre eixos
Aros Rims
RaceFace AR30 | RaceFace AR30 | Shimano MT510 SH12
Pneus Tires
Maxxis Minion DHR II 27,5" x 2.60WT | MAXXIS ASSEGAI 3C MaxxGrip

Geometria

Size SM MD LG XL
a
Comprimento do tubo de selim Seat tube length
440,0
440,0
460,0
500,0
b
Ângulo do tubo de selim Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Comprimento do tubo superior efetivo Top tube length
618,0
645,0
673,0
700,0
d
Comprimento do tubo de direção Head tube length
115,0
125,0
135,0
145,0
e
Ângulo do tubo de direção Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Distância entre o eixo da roda e direção Rake
44,0
45,0
44,0
44,0
g
Trilha Trail
128,0
127,0
128,0
128,0
h
Comprimento entre eixos Wheelbase
1220,0
1250,0
1279,0
1308,0
i
Comprimento de rabeira Chainstay length
436,0
436,0
436,0
436,0
j
Altura do movimento central Bottom bracket drop
15,0
15,0
15,0
15,0
k
Altura do quadro Stack height
622,0
631,0
640,0
649,0
l
Comprimento do quadro Reach
441,0
466,0
491,0
516,0
m
Altura do tubo superior Standover height
1123,0
1126,0
1132,0
1136,0
x
Altura do movimento central ao solo Bottom bracket height
340,0
340,0
340,0
340,0
y
Comprimento do central ao eixo dianteiro Front center
784,0
814,0
843,0
872,0
